CINCOM R SERIES

R04VI
High-speed, high-precision machining of tiny precision parts

SPECIAL ORDER ONLY!

BACK TO OTHER CINCOM MODELS

Machine Information

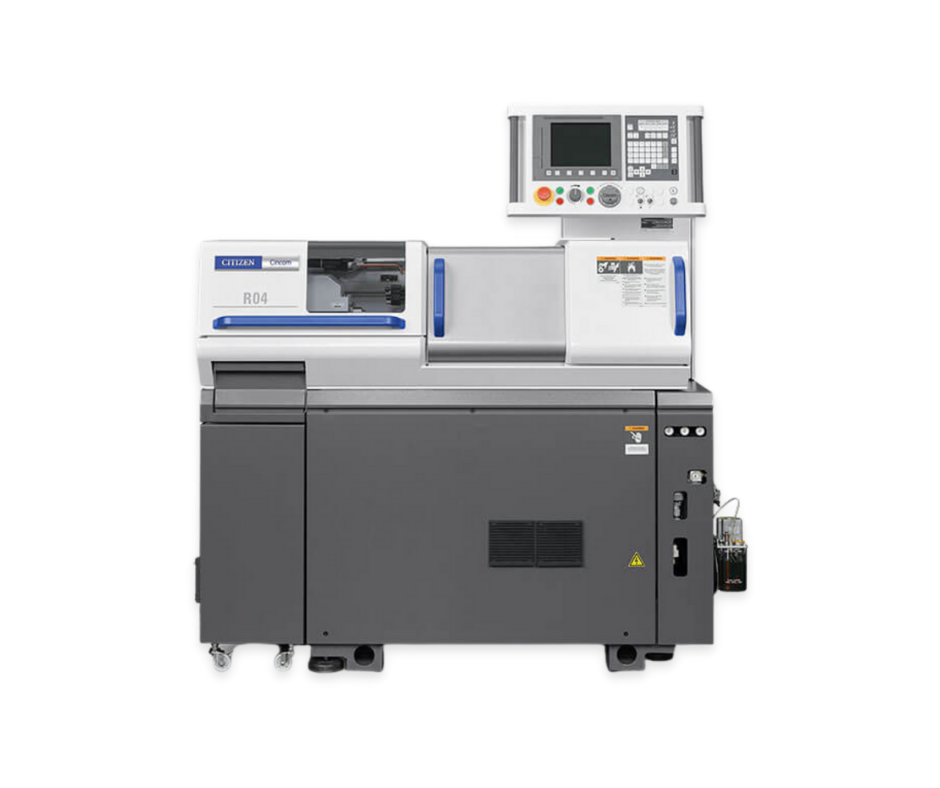

Cincom R SERIES

Cincom SERIES R SERIES

Maximum machining diameter ∅ 4 mm - The R04 CINCOM is compact and has a maximum machining diameter of ∅ 4 mm. It specializes in machining small-diameter parts, thus offering a wider range of high-precision work pieces for specialized parts.



Cincom R04 means rapid progress with high tolerance and productivity, while utilizing very little space.

SUPER HIGH-SPEED TURNING
The new main spindle and chucking mechanism results in state-of-the-art, super high-speed turning resulting in greatly reduced machining time.

NEW SLIDE STRUCTURE

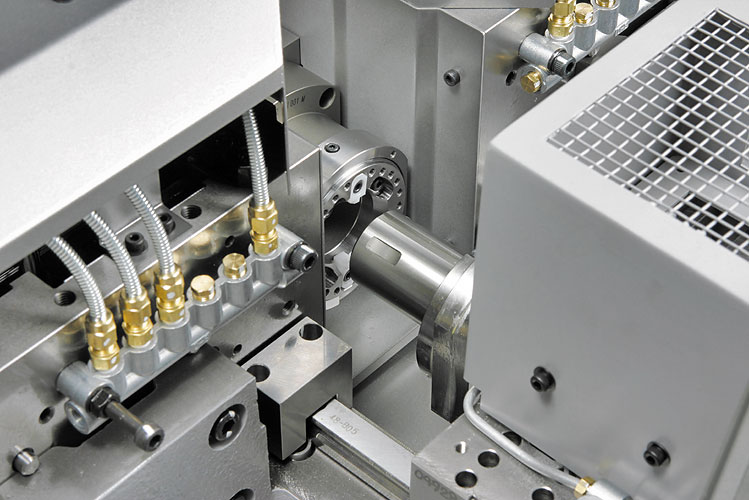

CITIZEN developed the optimum slide structure for machining tiny parts. The new slide is driven by a linear motor, without any deflection and backlash from power transmission, resulting in the highest-speed, the highest response and making the least noise. Moreover, equipped with two independently driven gang tool posts, the Cincom R04 processes as a Cam-lathe.

COMPACT AND EFFICIENT DESIGNING
The CITIZEN R04 requires half the space of a B12, due to the design of the built-in spindle and linear motor. Productivity space per unit is drastically improved.


Cincom R SERIES

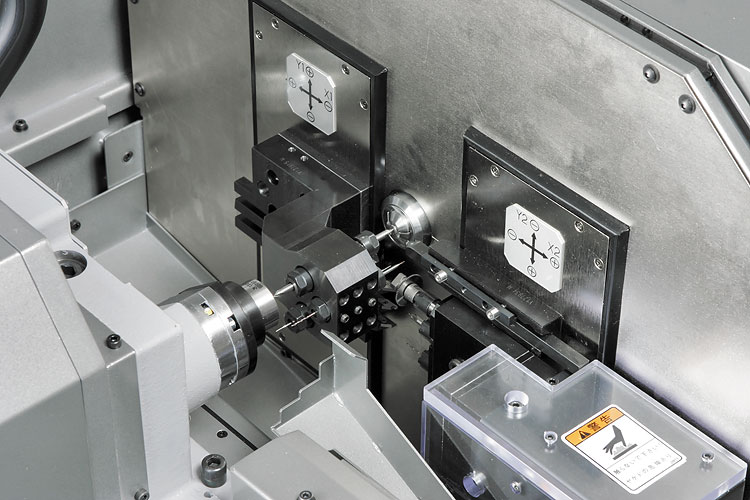

Axis Movement

Cincom R SERIES

Axis Movement

Cincom R SERIES

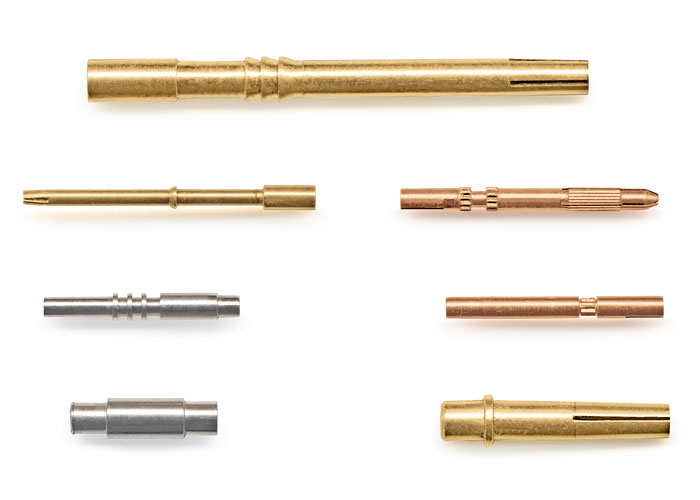

Typical Parts

Functions

Standard NC functions

  • NC unit dedicated to the R series
  • Automatic power off function
  • 7” monochrome LCD display
  • Tool offset pairs: 16
  • Display language
  • Macro dedicated to the R series
  • Axis control group count: 5
  • Background editing
  • Input code: ISO
  • Input/output interface: RS232C/PC card
  • Command input: incremental or absolute
  • Operating time display
  • Feed command: millimeters per revolution feed or millimeters per minute feed
  • Product counter: Up to 8 digits
  • Zero-point return function
  • Manual feed function
  • Automatic return to return position
  • Self-diagnostic function
  • Automatic return to queuing position
  • Program storage capacity equivalent to 20m
  • Automatic return to the start position
  • Alarm history display
  • On-machine program check function
  • Main spindle 15° index



Functions

Optional NC functions

  • Program storage capacity
  • 1° indexing, main, back Equivalent to 40m of tape
  • Canned cycle for drilling Equivalent to 80m of tape
  • Tool noise radius compensation Equivalent to 120m of tape
  • Continuous thread cutting
  • Corner chamfer/round function
  • Synchronous tapping
Accessories

Standard Accessories

  • Main spindle chuck
  • Chasing device
  • Workplace separator
  • Stand-alone coolant tank with level sensor
  • Stationary guide bushing device
  • Door switch



Accessories

Optional Accessories

  • Stationary guide bushing device with
  • Cutoff tool breakage detector open/close function
  • Coolant flow rate detector
  • Bar loader
  • Workpiece unloading device
  • Small 4-division separator
  • Patrol lamp indicator
  • Chip conveyor
  • Illuminator
Cincom R SERIES

MACHINE SPECIFICATIONS

ITEM R04
Maximum machining diameter (D) Ø4mm
Maximum machining length (L): Fixed guide bushing 40mm
Maximum machining length (L): Rotary guide bushing --
Maximum front drilling diameter Ø3mm
Maximum front tapping diameter (tap) M3
Spindle through-hole diameter Ø9mm
Main spindle speed: Fixed guide bushing 20,000 rpm (rating: 16,000 rpm)
Main spindle speed:Rotary guide bushing --
For the gang rotary tool: Maximum drilling diameter Ø2mm
For the gang rotary tool:Maximum tapping diameter M2
For the gang rotary tool:Spindle speed 8,000 rpm (part: 6,000 rpm)
Max. chuck diameter of back spindle Ø4mm
Max. protrusion length in back machining process 40mm
Max. drilling diameter in back machining process Ø2mm
Max. tapping diameter in back machining process M2.6
Back spindle speed 10,000 rpm
Number of tools to be mounted 13
Turning tools on the gang tool post 5
Cross rotary tools on the gang tool post 2
Tools for front drilling 3
Tools for back drilling 3
Tool size: Tool (gang tool post) □8mm
Tool size: Sleeve Ø15.875mm
Motors: Spindle drive 0.75 / 1.1 kW
Motors: Back spindle drive 0.5 kW
Motors: Tool spindle on the gang tool post 0.2 kW
Motors: Coolant oil 0.18 kW
Motors: Lubricating oil 0.00 3kW
Center height 1,000mm
Rated power consumption 4kVA
Weight 950kg
Cincom R SERIES

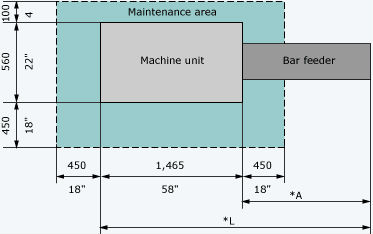

Standard Floor Layout

Standard R SERIES Floor Layout

Maximum height: 1,410 mm (55.51") including mount
*A and L dimensions vary depending on bar feeder type

All specifications are subject to change without prior notice.
