Machines made by CITIZEN

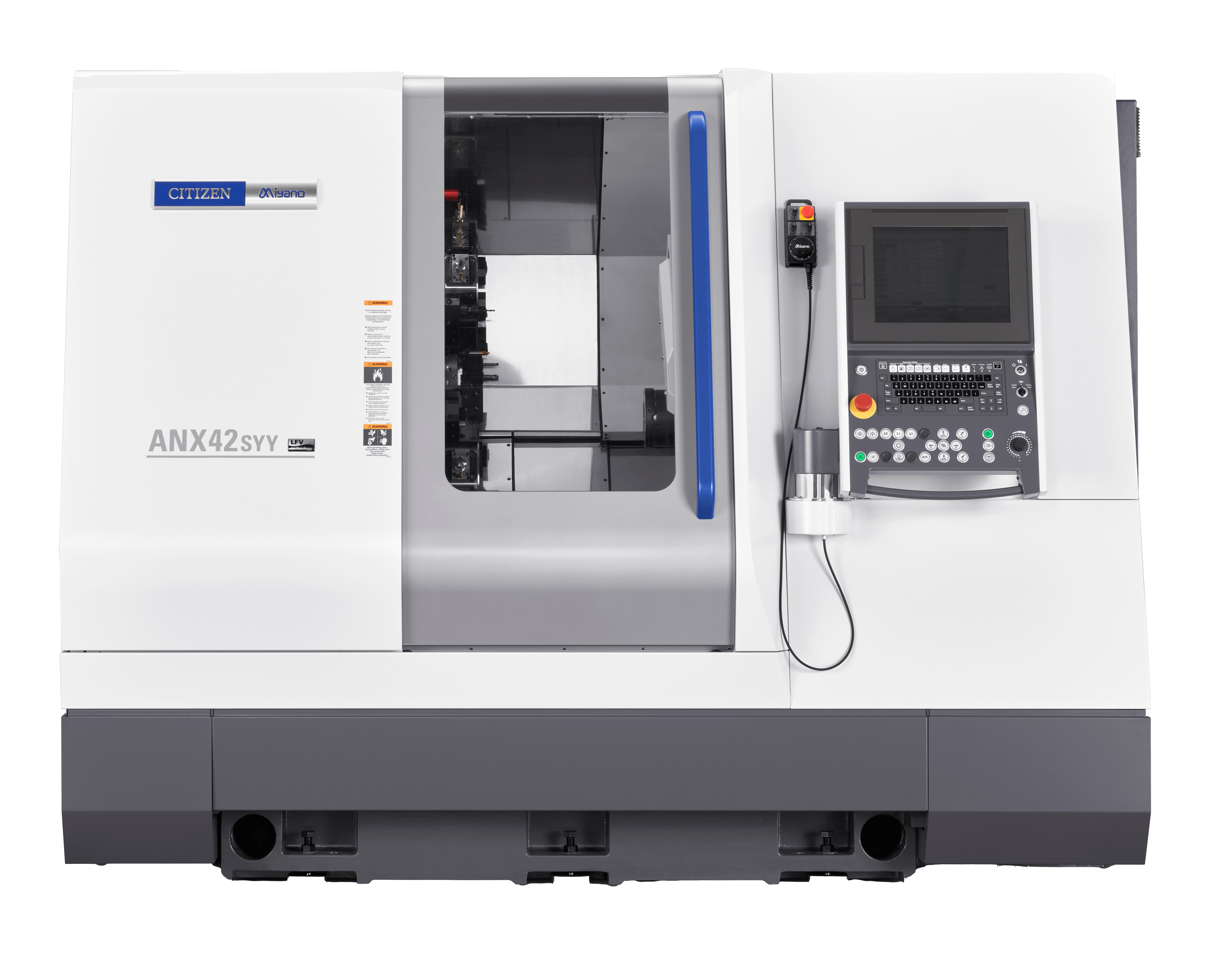

ANX-42SYY
Innovative Turret Lathe with LFV Technology
The ANX opens a new era as the first Miyano turret lathe equipped with LFV technology. Features a new HMI, double Y-axis machining, and high-speed built-in spindle motors.
1-5/8" (42mm) Max Bar Capacity
Fanuc 31i-B Plus (New HMI)
LFV Technology Equipped
10-Axis Simultaneous Control
| ITEM | ANX-42SYY |
|---|---|
| Max. Machining Dia (Bar Work) | 1-5/8" |
| Main / Back Spindle Speed | 6,000 rpm |
| Revolving Tool Spindle Speed | 6,000 rpm |
| Rapid Traverse: X1, Z1, X2, Z2, X3 | 18 m/min |
| Rapid Traverse: Y1, Y2 | 18 m/min |
| Rapid Traverse: Z3 | 30 m/min |
| Spindle Motors (Main & Back) | 15 hp / 10 hp |
| Mountable Tools (Turret Stations) | 12 + 12 (All 24 Revolving) |
| Machine Weight | 13,779 lbs |
Miyano System Fs31i-B Plus
- 15-inch XGA Touch Panel (New HMI)
- 10-Axis Control (X1-3, Z1-3, Y1-2, C1-2)
- Collision Detection Function
- Thermal Displacement Correction
Special Additional Units
- LFV Mode 1 (Programmable Chip Breaking)
- Tool Offset: 400 sets total
- Storage: Up to 100MB Capacity
- Polygon Turning & Circular Thread Cutting
Standard Equipment
- Medium Pressure Coolant (300 psi)
- Chip & Workpiece Conveyors
- Spindle Brake & Air Blower
- 3-Color Signal Tower
Optional Equipment
- High-Pressure Coolant (1000 psi)
- 5” Power Chuck / Collet Systems
- Mist Collector & Drill Checker
- Barfeed Interface
Compact body width: 2,650 mm
