MIYANO ABX-51/64
THY The Perfect Turning Center With Three Y Axis. SYY A Long Stroke, High-Spec Turning Center With Turrets And Y Axes At Top And Bottom.
View Model.jpg)

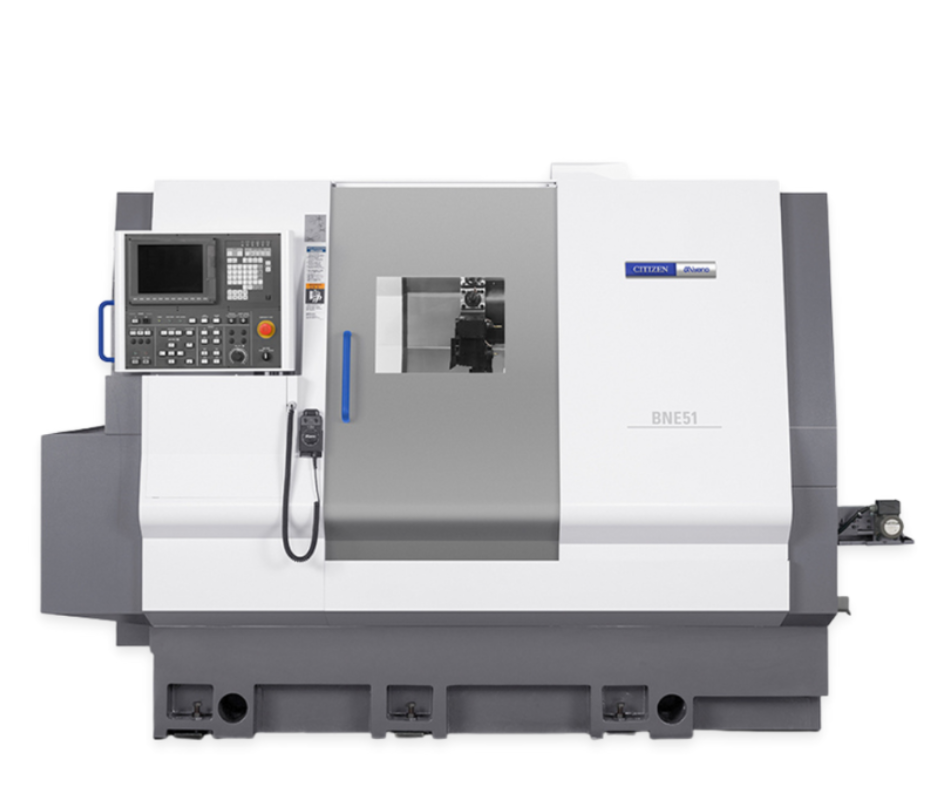

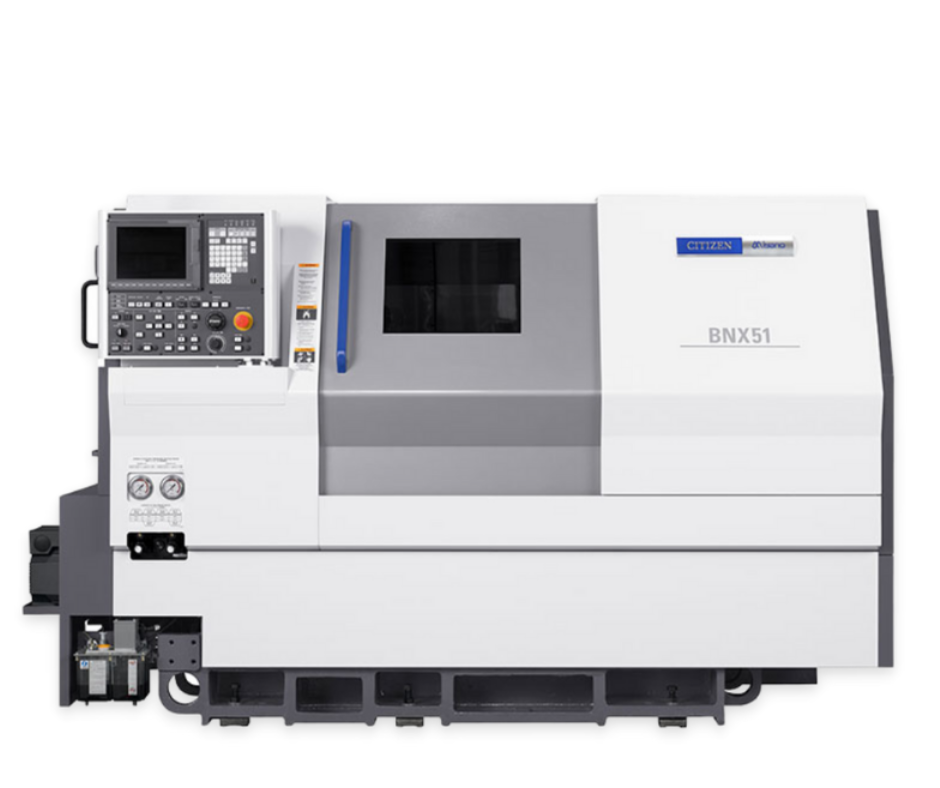

MIYANO BNX-51MSY
A machine synonymous with the history of Cincom has been designed for the new age.
View Model Features
MIYANO FEATURES
Rigidity Exemplified
One of MIYANO’s major characteristics is the high-rigidity spindle design that is the keystone to machining. Spindles with a thick-walled construction and large diameter bearings minimize deflection and enable continuously stable operations. The combination of precision double-row cylindrical roller bearings that bear radial loads and precision angular contact ball bearings that maintain high precision and stable rotational accuracy are also key elements.
Durability Defined
When production matters, MIYANO delivers. High-rigidity spindles, hand-scraped slideways, and a platform-style construction of the machine bed—assembled and inspected under a strict management system—ensure durability. MIYANO machines are built to last.
Synchronous and Superimposed Operation

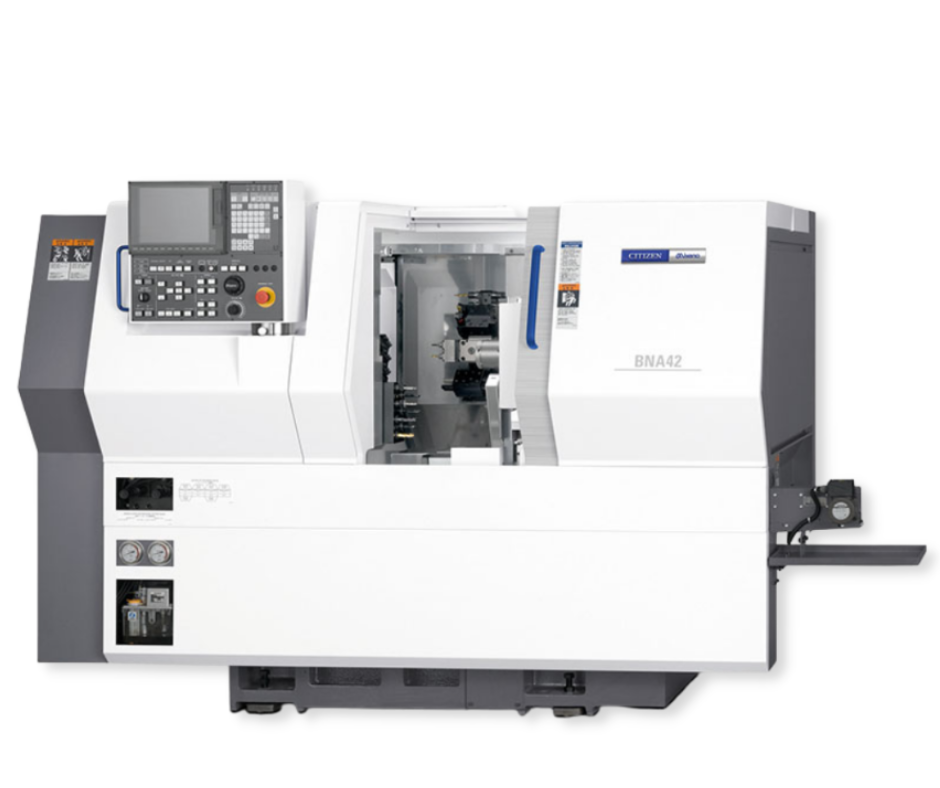

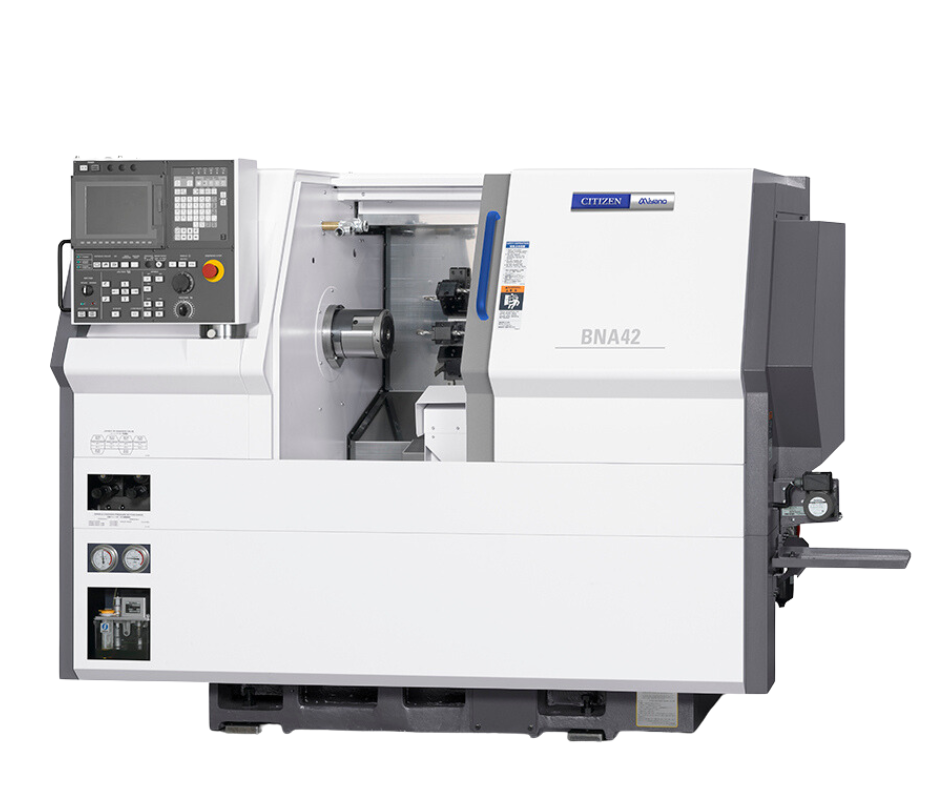

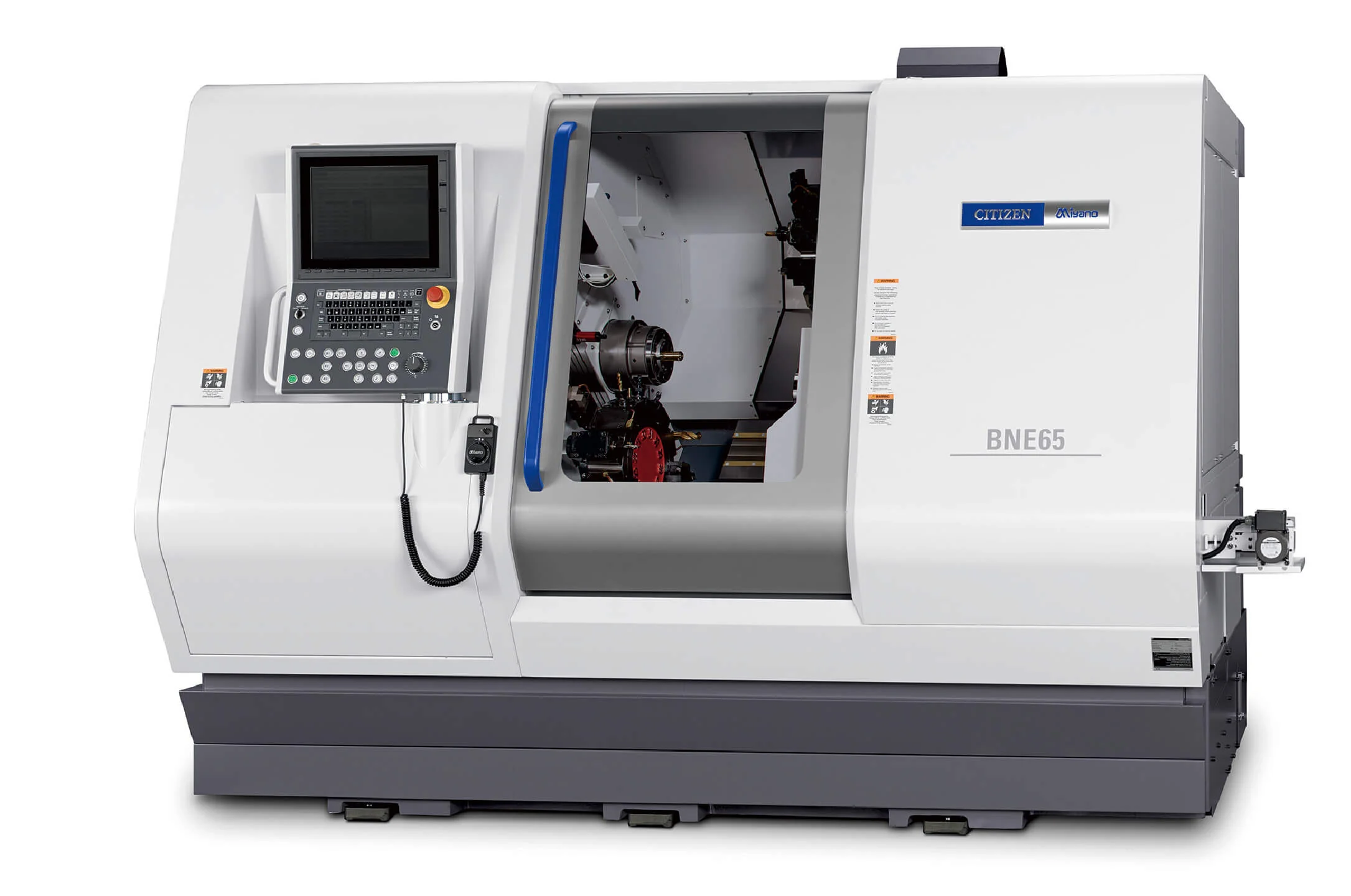

Synchronized Control Available for: CINCOM L20, M16, M20/32 and MIYANO BNA-42MSY2, BNA-42GTY, BNX-51MSY, BNE-51MSY

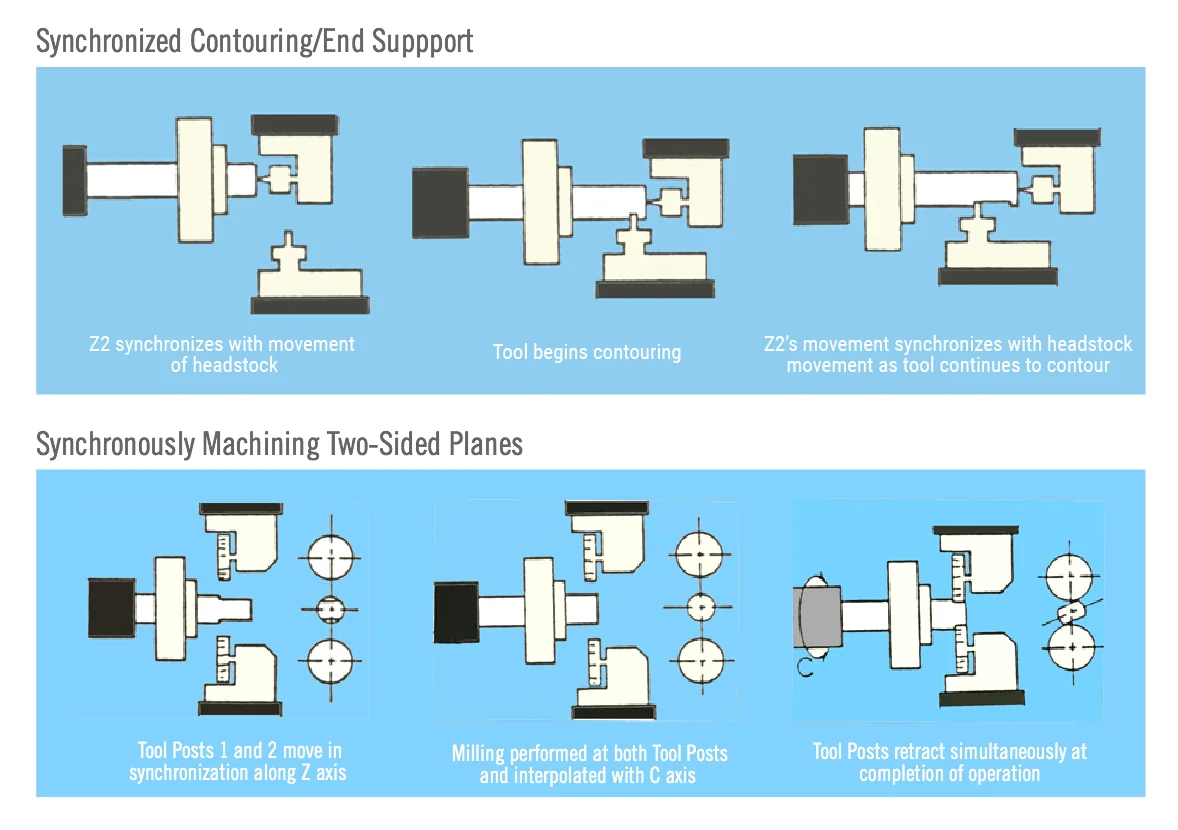

Synchronous Operation A patented feature that allows multiple machining functions to be performed simultaneously. Two axes are programmed to operate in conjunction with one another. Movements along both axes are programmed to occur at precisely the same time, and across precisely determined distances.

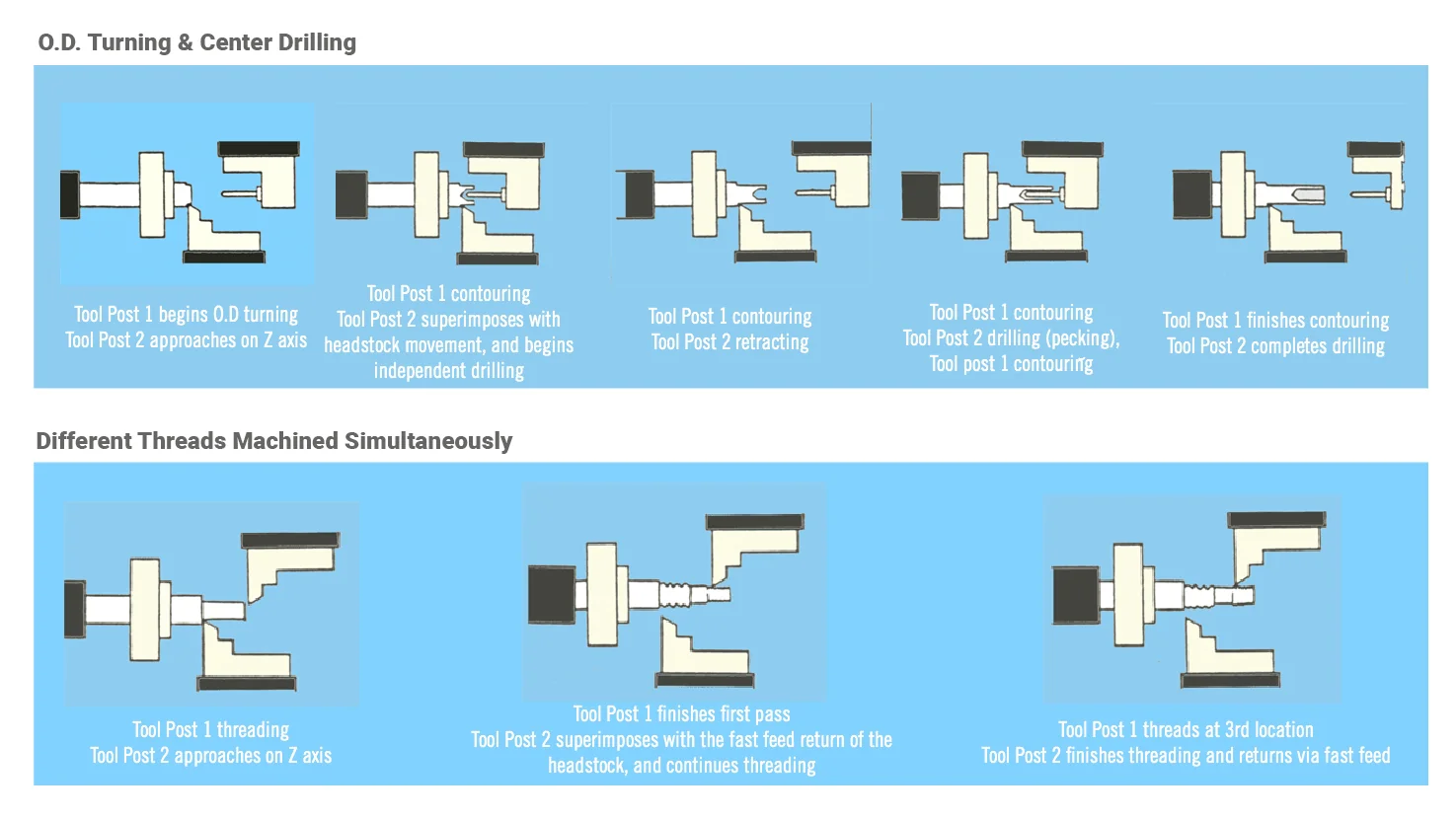

See ExampleSuperimposed Operation A patented feature, this function allows the motion of the main Z1 axis to overlap the motion of the Z2 axis. As a result, machining can be performed on the Z2 and X2 axes, independently from operations being performed on the Z1 and X1 axes.
See ExampleMotion Relocation Detector
A motion detector is now a standard, permanent device in all new CITIZEN machines to ensure that any relocation of the machine is consistent with export laws.
It is Marubeni Citizen-Cincom’s policy to comply with all aspects of U.S. laws and regulations relative to U.S. export controls, and in particular with the Commerce Department’s Export Administration Regulations, the State Department’s International Traffic in Arms Regulations, and the Treasury Department’s various sanctions regulations.
Likewise, Japan has similar export control laws, therefore Citizen Machinery began equipping their machines with a Motion Relocation Detector (MRD).
First introduced on CINCOM in the Asian market in 2001, the MRD proved to be successful in the execution of the security trade control system. Therefore, in April 2007 this system became a standard feature on all new CITIZEN’s whether they are shipped overseas or not.
A password is required during initial installation to start-up the machine as well as each time the machine is moved. Upon repositioning or relocation of the machine an alarm will sound and the machine will shut down. A new password is then required to re-activate the machine. The process is simple — just contact Marubeni Citizen-Cincom prior to moving your machine to verify the location and ensure it is in compliance with export regulations. You will then receive a new password to initiate the start-up at no additional cost to you.
Software
MIYANO SOFTWARE
WinTS
As CNC machines get more complex, their processes become equally complex, making it difficult to create an accurate time study for a given part. WinTS can be used with all your CNCs to create accurate time studies.
Learn More
WinCNC
WinCNC was developed especially for Citizen users to be able to edit up to three programming systems at the same time. As you are creating a CNC program there are many tools to help you complete sections of the CNC code.
Learn More
