Machine Information
Miyano BNA-42MSY2
The BNA-42SY has a dual-spindle/ single turret tool post-mechanical configuration, and the base and turret rigidity has been increased to improve basic functions. The turret tool post has been equipped with a Y axis to expand the number of installed tools to 12 stations in order to provide the use of a rich assortment of tools, as well as simultaneous left/right machining for superimposed machining and similar processes. The tool holder and rotary tools are the same used for the current BNA Series and the program compatibility is also ensured
Featuring
Dual-spindle/single turret tool post
Tool post equipped with Y-axis enables the use of 12 stations
Increased base and turret rigidity
Left/Right simultaneous machining
Power is increased up to 11 kW during Spindle acceleration and deceleration
LFV Capable (Low-Frequency Vibration)

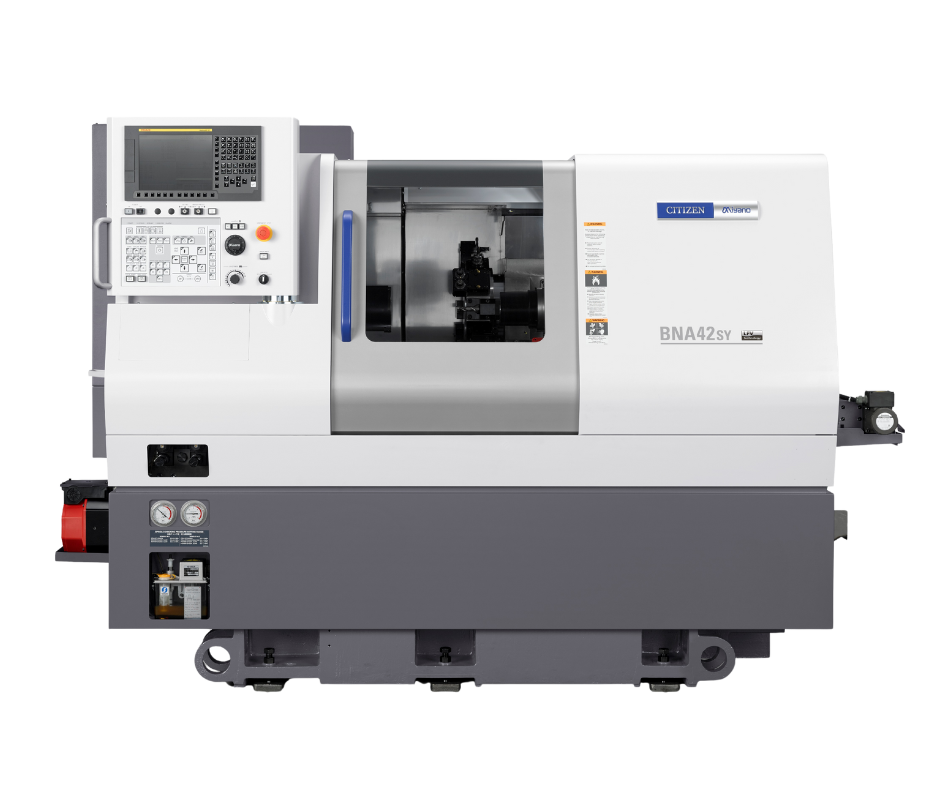

Miyano BNA-42SY5
Tooling Area
The opening has been enlarged for easier access and provided with a large window to improve visibility. The port through which chips fall has been enlarged and the removal port has been moved closer to the outer edge of the cover to make it easier to clean away chips. These new NC units are standard-equipped with a dual-check safety function to improve safety and productivity.

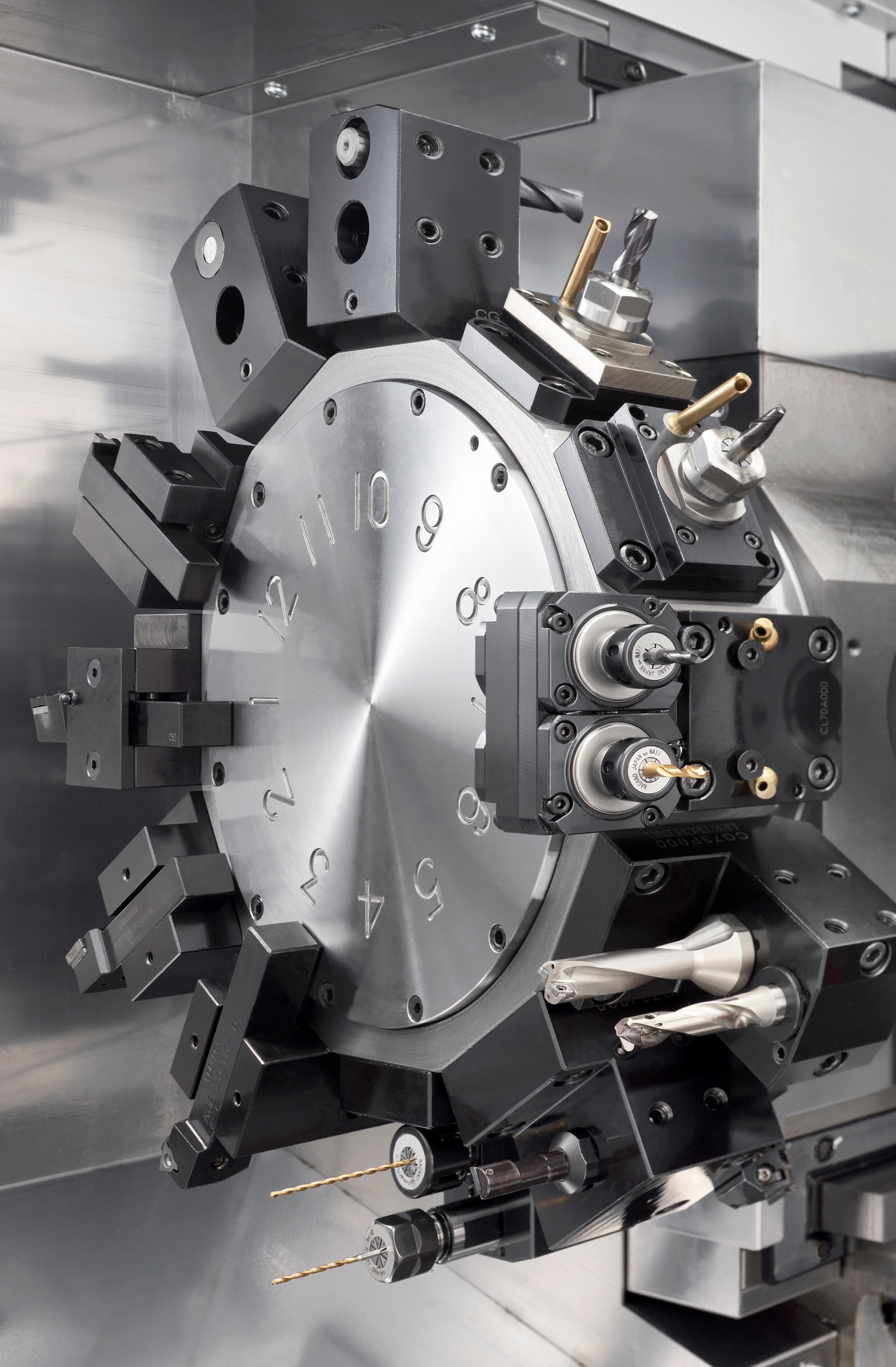

Tool post has been equipped with a Y axis to expand the number of installed tools to 12 stations

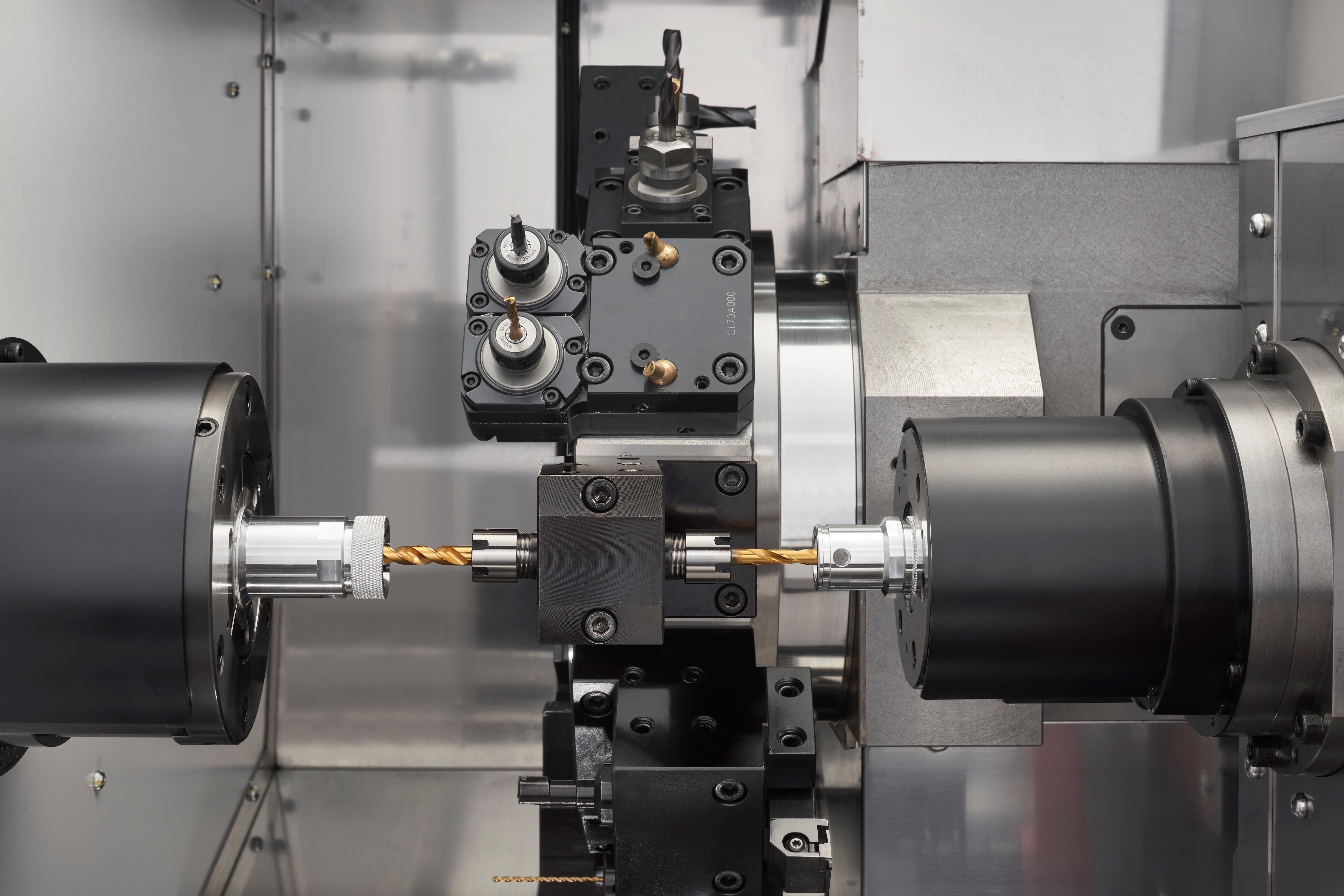

Simultaneous machining using both left and right-side spindles enables the turret tool post and front spindle to perform machining while the back spindle follows after to perform superimposed and similar types of machining, thereby further reducing the processing time.
Specifications
Machine Specifications
| Maximum bar diameter: SP1 | ∅42 mm |
| Maximum bar diameter: SP2 | ∅34 mm (∅42 mm / OP) |
| Standard machining length | 100 mm |
| Number of spindles | 2 |
| Spindle speed: SP1 | 6,000 min-1 |
| Spindle speed: SP2 | 5,000 min-1 |
| Closing tube diameter: SP1 | ∅42 mm |
| Closing tube diameter: SP2 | ∅30 mm |
| Power chuck size: SP1 | 5" |
| Power chuck size: SP2 | 4" |
| Number of Tool Post | 1 |
| Type of Tool Post | 12 station |
| Opposite side distance of tool post | 300 mm |
| Max. turning radius of tool post | 505 mm dia. |
| Dimensions of tools used | 20 mm sq. |
| Dimensions of tool post holes | 25 mm dia. |
| Number of installed rotary tools | Max. 12 |
| Type of rotary tool drive | Independent clutch drive |
| Rotating speed of rotary tools | 50 to 5,000 min-1 |
| Machining capacities (Drill) | Max. 10 dia. |
| Machining capacities (Tap) | Max. M6 × 1 |
| (Limited to spiral and point taps for M8 × 1.25) | |
| Max. M8 × 1.25 for BSBM | |
| Rapid feed rate X axis | 20 m / min |
| Rapid feed rate Z axis | 20 m / min |
| Rapid feed rate Y axis | 12 m / min |
| Rapid feed rate B axis | 20 m / min |
| X axis slide thrust | 5 kN |
| Z axis slide thrust | 5 kN |
| Y axis slide thrust | 7 kN |
| B axis slide thrust | 5 kN |
| Max. travel distance (Tailstock) | 200 mm |
| Morse taper size (Tailstock) | MT2 |
| Max. slide thrust (Tailstock) | 4.3 kN (at 3.4 MPa) |
| Min. slide thrust (Tailstock) | 0.57 kN (at 0.45 MPa) |
| Drive method (Tailstock) | Hydraulic |
| Spindle motor SP1 | 11 / 7.5 / 5.5 kW (15% / 15 min / cont.) |
| Spindle motor SP2 | 5.5 / 3.7 kW (15 min / cont.) |
| Rotary tools motor | 2.8 / 1.0 kW |
| Coolant pump motor | 0.25 kW |
| High-pressure coolant motor | 1.1 / 0.75 kW (60 / 50Hz) |
| Power supply | AC 200 / 220 +5% / -10%, 50 / 60 Hz ±1% |
| Power supply capacity | 26 kVA |
| Air pressure source | 5 MPa |
| Fuse capacity on facilities side | 100 A |
| Hydraulic tank capacity | 18 L |
| Lubricating oil tank capacity | 2 L |
| Coolant tank capacity | 235 L |
| Machine height | 1,745 mm |
| Required floor surface area | W 2,350 × D 1,433 mm |
| Machine weight | 3,650 kg |
