Miyano BNE-51SY6
The SY-type turning centers feature an upper turret, a lower turret, a Y-axis slide for the upper turret, and a sub-spindle. These new bar machines handle more complex work with higher productivity to meet the ever-increasing demand for value-added, multifunctional parts. This new line provides the capability of a machining center, enabling you to create highly complex parts surpassing the limitations of ordinary turning work.
Miyano BNE-51SY6
Tooling Area

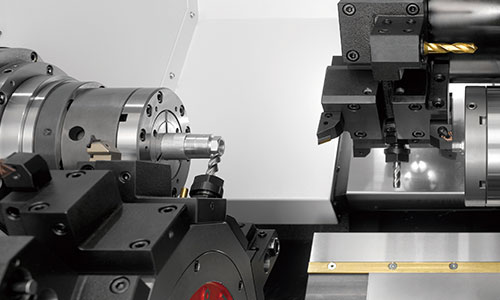

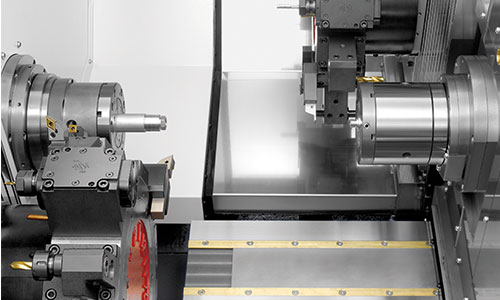

In addition to front/back integrated machining and multiple cutting, the Y axis installed on turret HD1 enables a greater variety of complex machining.
Specifications
Machine Specifications
| ITEM | BNE-51SY6 | |
|---|---|---|
| Power chuck | L/R spindle | 6"/5" oil-hydraulic |
| Max. bar capacity | L spindle | ∅ 51 mm |
| Max. bar capacity | R spindle | ∅ 41 mm |
| Max. turning length | Main spindle | 90 mm |
| Turret tool stations | Upper turret | 12 St. |
| Turret tool stations | Lower turret | 12 St. |
| Turret slide travel | Upper turret X1-axis | 175 mm |
| Turret slide travel | Upper turret Z1-axis | 380 mm |
| Turret slide travel | Upper turret Y-axis | ±40 mm |
| Turret slide travel | Lower turret X2-axis | 145 mm |
| Turret slide travel | Lower turret Z2-axis | 175 mm |
| R spindle travel | 450 mm | |
| Tool shank size | U & L turret | Sq. 3/4" |
| Tool hole diameter | U & L turret | ∅ 1" |
| Max. No. of revolving tool stations | Main turret | 12 |
| Max. No. of revolving tool stations | Sub turret | 12 |
| Spindle speed range | L/R spindle | 50~5,000 min–1 |
| Main spindle motor | L/R spindle | 15/5.5 kW |
| Machine weight | 7,400 kg |
