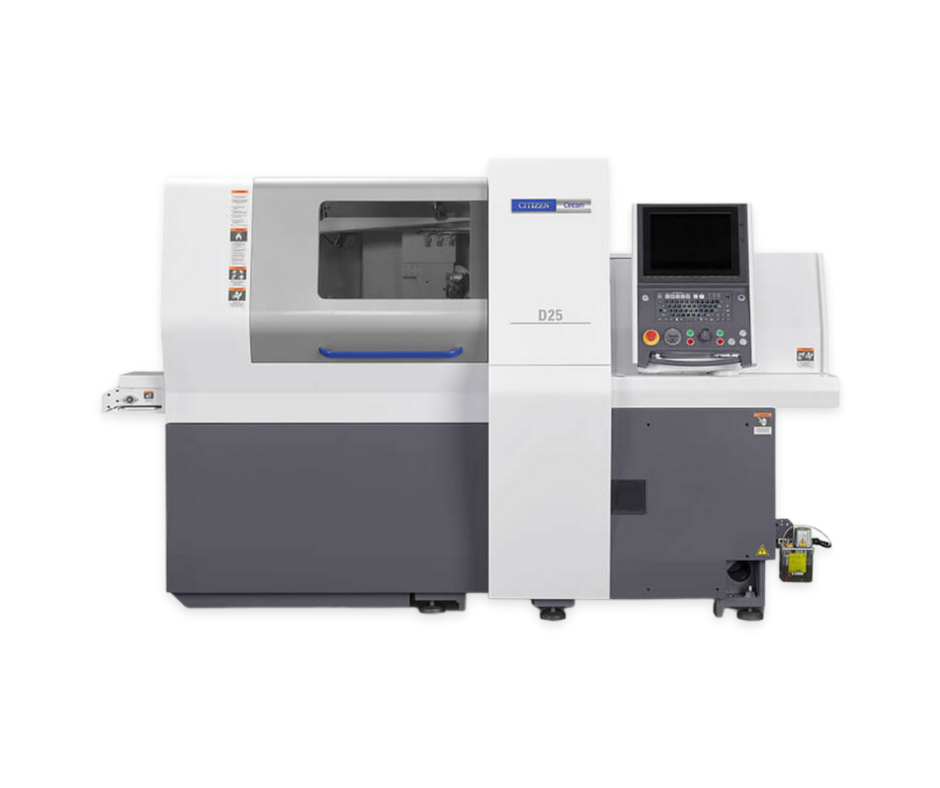

Cincom D25 SERIES
Introducing Citizen’s newest development, the D25, equipped with double gang tool posts and B axis. The double gang layout enables short cycle times for high productivity at low part cost. The large number of tools, for both main and sub spindle, provides cost effective production of complex workpieces.

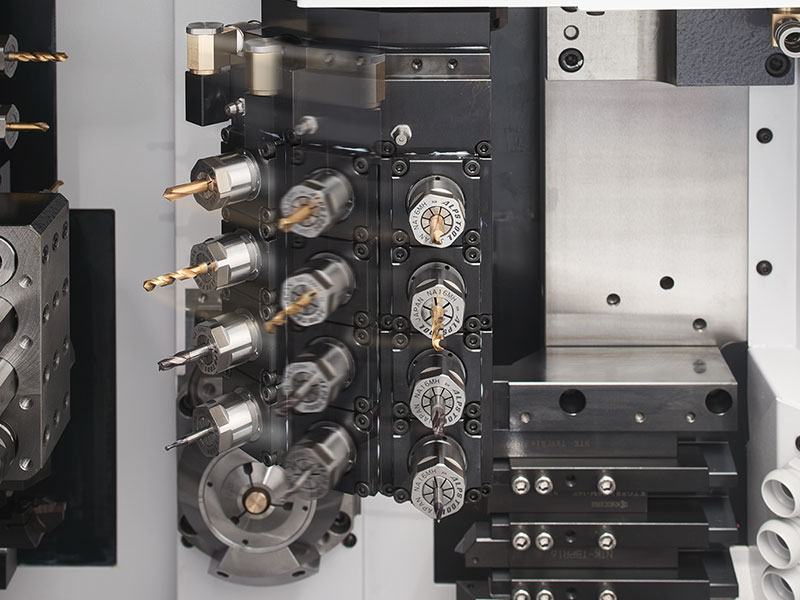

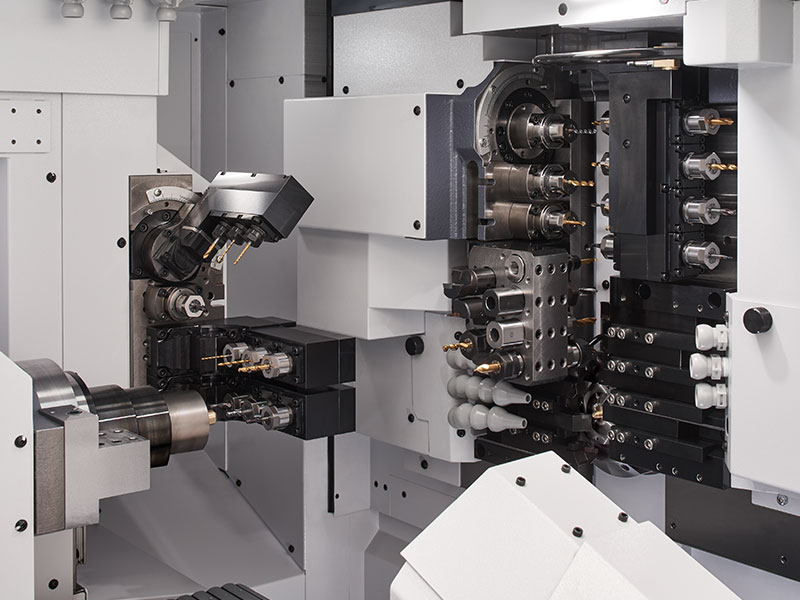

Z2 axis to second gang for opposed balance cutting to first gang and for simultaneous rough and finish machining. Back tool post (Y3 axis) accepts radial or face modular fixed/rotary tools and is equipped with adjustable rotary tool for face, radial or angle machining. B axis is on the first gang for complex machining on main and sub spindles.

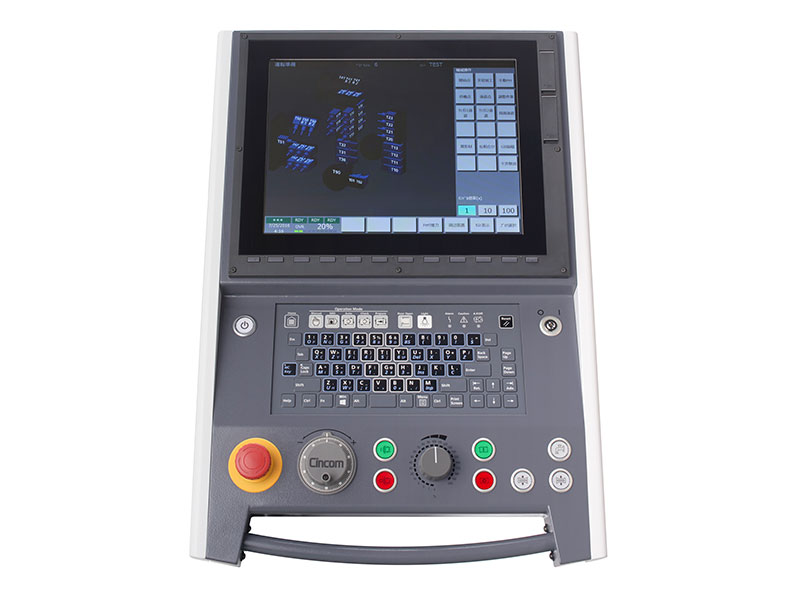

Next generation CNC system with touch screen and qwerty keyboard. Ready for IoT (Internet of Things)
Easy set up with on screen graphical prompts
3 x Y axis, 3 x Z axis
B axis for front-back machining
Independent adjustable angle rotary tools to sub spindle
Power and speed: 5.5 kW and 10,000 rpm
With/without guide bushing – switchable operation
Accessories
Standard Accessories
- Main Spindle Chucking Unit
- Back Spindle Chucking Unit
- Rotary Guide Bushing Unit
- Rotary Tool Driving Unit On Gang Tool Post
- Back Tool Post Rotary Unit
- Coolant Unit (with Level Detector)
- Lubricating Oil Supply Unit
- Pneumatics Ejection Device
- Cap Nut For NGB Mode
- Door Lock
- Cut-Off Tool Breakage Detector
- Workpiece Separator and Conveyor
- Spindle Oil Chiller
- Work Light; Handling Tool
- Thermal Displacement Correction Device
- RS232 Interface
Accessories
Optional Accessories
- Knock-Out Jig for Through-Hole Workpiece
- Chip Conveyor
- Coolant Flow Rate Detector
- Signal Lamp
- 3-Color Signal Tower
Functions
Standard NC functions
- CINCOM SYSTEM M850W (Mitsubishi)
- Display: 15 inch Touch Panel
- Sub inch: 0.00001” Minimum Increment
- Hi-Speed Program Check
- Main-back Constant Surface Speed Control
- Variable Lead Threading
- Circular Threading
- Corner Chamfering/Rounding
- User Macro
- Canned Cycle for Drilling
- Main-Back C-Axis
- Synchronous Tapping with Phasing Function
- Differential Speed Synchronous Tapping
- Hobbing/Polygon during Spindle Synchronization
- Milling Interpolation
- Helical Interpolation
- Slant Helical Interpolation
- Tool Life Management I and II
- Program Storage 160m
- Tool Offset 99 Pairs
- 8 bits B-Code output
- Optional Block Skip 9 sets
- External Memory Running
- Network I/O
Functions
Optional NC functions
Program Storage Capacity: 320 / 600 / 1200 / 2400 / 4800m
Cincom D25 SERIES
MACHINE SPECIFICATIONS
| ITEM | D25 Type VIII (D25-1M8) |
|---|---|
| Max. machining diameter (D) | 1" dia. |
| Max. machining length (L) With guide bushing | 250 mm |
| Max. machining length (L)Guide bushing less | 2.5 D |
| Spindle speed | Max. 10,000 rpm |
| Spindle speed of the gang rotary tool | Max. 9,000 rpm |
| Max. chuck diameter of back spindle | 1" dia. |
| Max. chuck diameter of back spindle | 1" dia. |
| Max. part length for ejection to standard parts chute | 120 mm |
| Back spindle speed | Max. 10,000 rpm |
| Chuck and Bushing Main and back spindle collet | TF30 |
| Chuck and Bushing Guide Bushing | CD25 |
| Tool size Tool(gang) | 5/8" sq. , 3/4" sq. (cut off) |
| Tool size Sleeve | 1" dia., 3/4" dia. |
| Rapid feed rate X1, X2, Z2 axes | 24 m/ min |
| Rapid feed Others | 32 m/ min |
| Motor for spindle drive | 3.7/ 5.5 kW |
| Motor for rotary tool on the gang tool post | 2.2 kW |
| Motor for back spindle drive | 2.2/ 3.7 kW |
| Motor Back tool post rotary drive | 1.0 kW |
| Rated power consumption | 13.2 kVA |
| Center height | 1,050 mm |
| Weight | 7,606 lbs. |
Cincom D25 SERIES

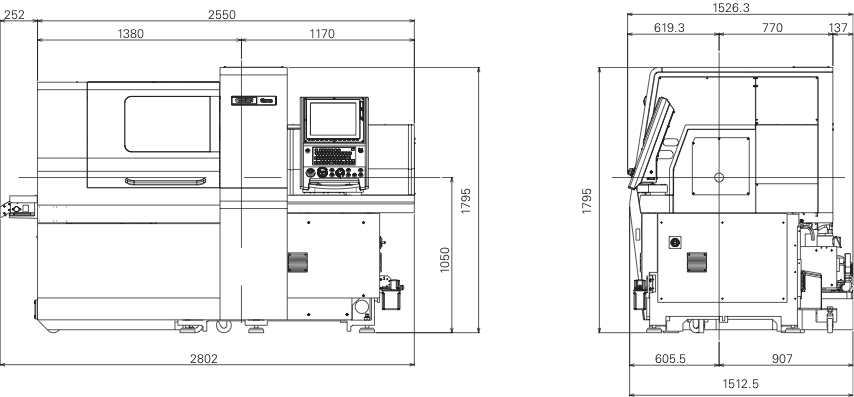

D25 External View
