Cool Blaster® High Pressure Coolant Systems

High-pressure coolant is an exceptional tool for performing deep hole operations such as gun-drilling and boring. Properly applied, high-pressure coolant is an effective solution for all chip control problems.

Direct high-pressure coolant can either break or control the chip away from the tool and workpiece thereby increasing tool life and improving finishes.

Cycle time for drilling can be reduced 40 - 70% with direct high- pressure coolant. The material is less likely to work harder, making drilling easier and in many cases eliminating the need for peck drilling cycles!

High-speed Drilling Operations
Chip Control For Turning And Grooving Improved Surface Finish
Increased Tool Life
Reduced Cycle Time
Greater Throughput

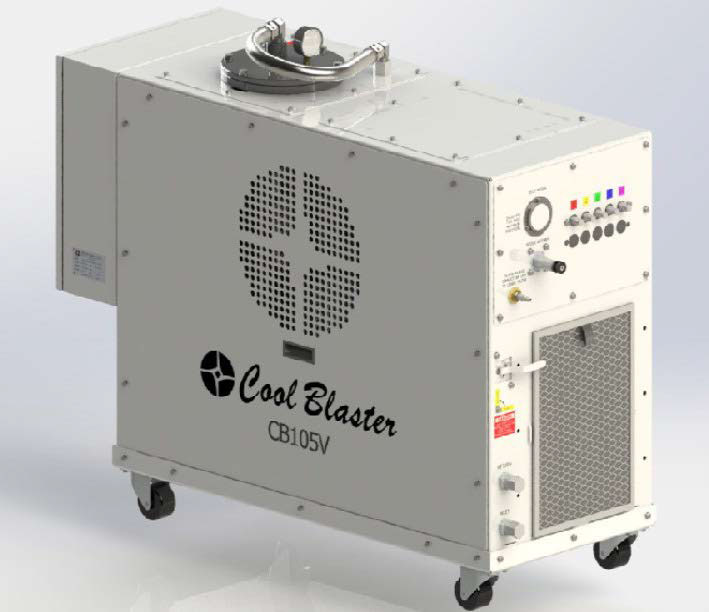

High Pressure Coolant Systems Model CB105V

5 Line System for Cincom Machine
Model CB105V


Features

Coolant is continuously filtered through 5 micron filter
5 independent high pressure coolant lines
Washable air inlet filter
Space saving vertical design: 19.5" W x 51.4" L x 43.4" H

High Pressure Coolant Systems Model CB105V

High Pressure Coolant Systems Model CB105V

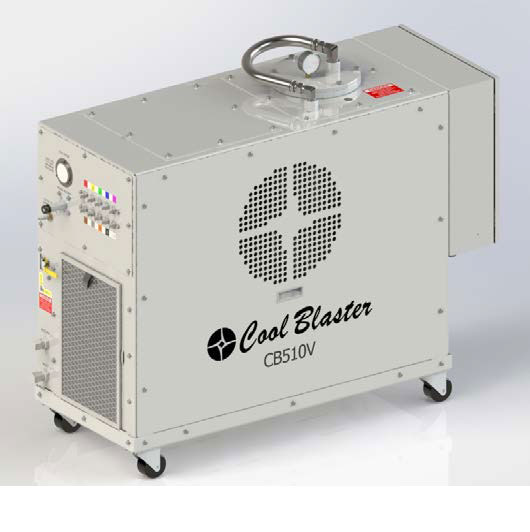

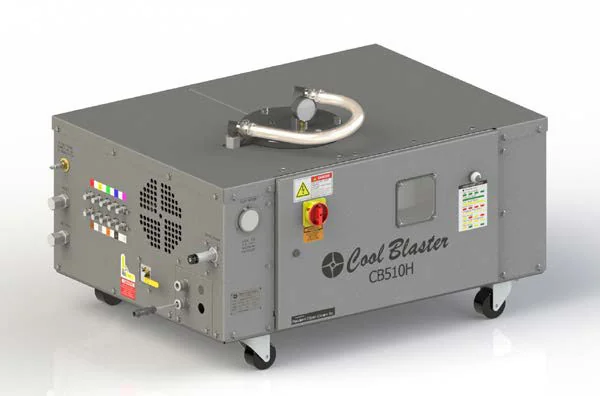

5 & 10 Line Systems with Heat Exchanger for Cincom Machines

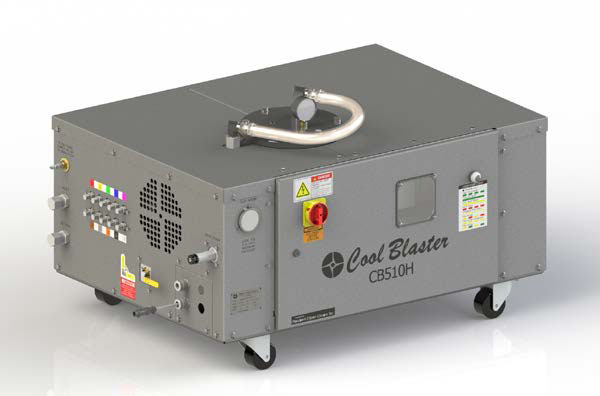

Model CB510 Available in Horizontal and Vertical Designs


Specifications:

2,000 PSI, 6.5 GPM
7.5 HP
5 micron filtration
Heat exchange system
PLC control integration
Electrical interface harness
Installation kit (HP hoses, fittings, manifold blocks for coolant distribution)
Diagnostic indicator lights
Restricted filter automatic shut off
Voltage: 200/230V 40.0 full load amps (optional 440/480V 30.0 full load amps)

Features:

2,000 CFM heat exchange system standard
Vertical or horizontal design
Available in 5 or 10 independent high pressure lines

High Pressure Coolant Systems Model CB105V

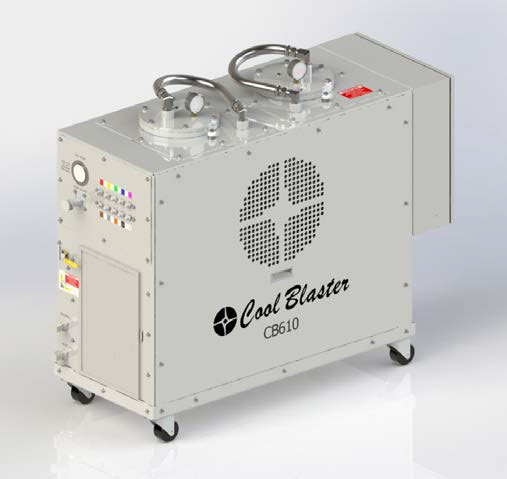

Dual Filter High Pressure Coolant System for Cincom Machines
Model CB610V 10 Line System with Heat Exchanger


The CB610 dual filter system is designed to automatically change-over to the secondary filter when the primary filter becomes clogged. The filter change-over will not stop production, therefore unattended or third shift operations can continue without disruption.

Features:

Automatic change over from clogged filter to clean filter occurs without loss of production
Air purge system automatically removes coolant from clogged filter canister
Washable air inlet filter provides clean air flow for heat exchange system
Space saving vertical design: 19.5" x 51.4" x 43.4"

Specifications:

2,000 PSI, 6.5 GPM
7.5 HP
5 micron filtration
Heat exchange system
PLC control integration
Electrical interface harness
10 independent high pressure coolant lines
Installation kit (HP hoses, fittings, manifold blocks for coolant distribution)
Diagnostic indicator lights
Voltage: 200/230V 40.0 full load amps (optional 440/480V 30.0 full load amps)

High Pressure Coolant Systems for MIYANO Machines

High Pressure Coolant Systems for MIYANO Machines

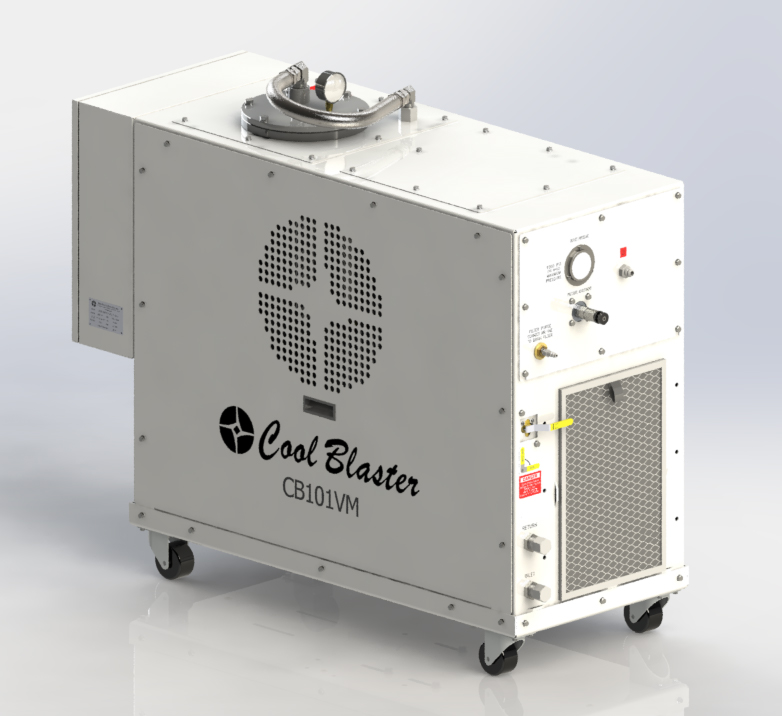

Model CB101VM


Features:

5 micron filtration
Single high pressure coolant line
Washable air inlet filter
Space saving vertical design 19.5” W x 51.4” L x 43.4” H

High Pressure Coolant Systems for MIYANO Machines

High Pressure Coolant Systems for MIYANO Machines

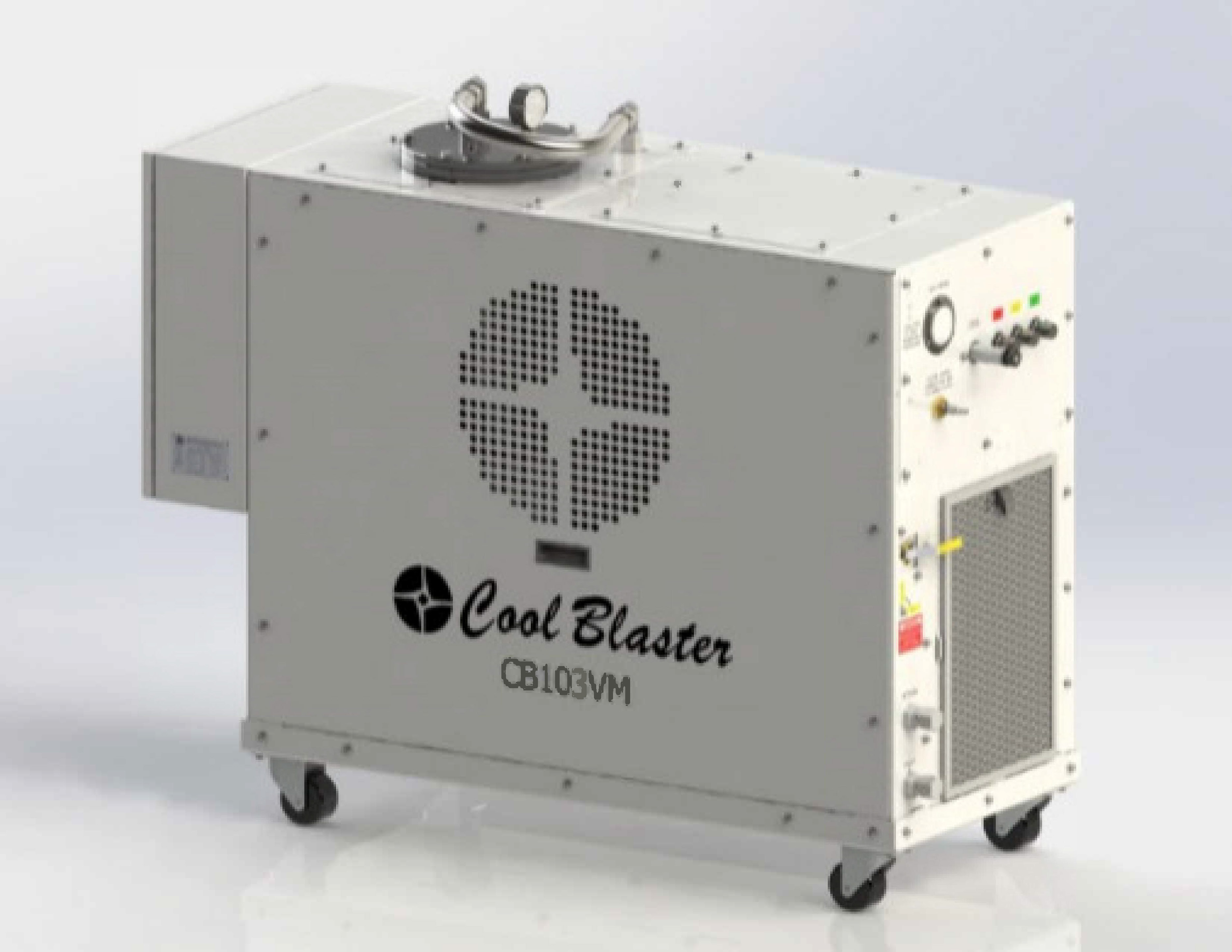

Model CB103VM


Features:

3 independent high pressure coolant lines
2,000 CFM heat exchanger
Washable air inlet filter
Space saving vertical design
19.5” W x 51.4” L x 43.4” H
