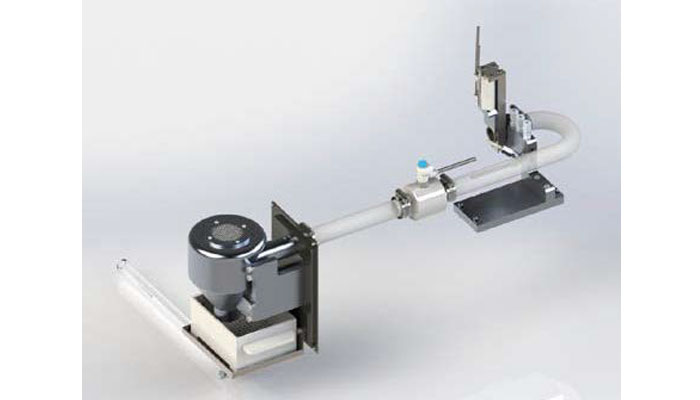

Small Part Vacuum Ejection System

Small Part Vacuum Ejection System

Small Part Vacuum Ejection System

The workpiece is ejected from the sub spindle into the vacuum extractor and travels outside the machine where it can be deposited into a multiple station rotary parts carousel. Parts can be segregated in the carousel for first article inspection and other post process activities.

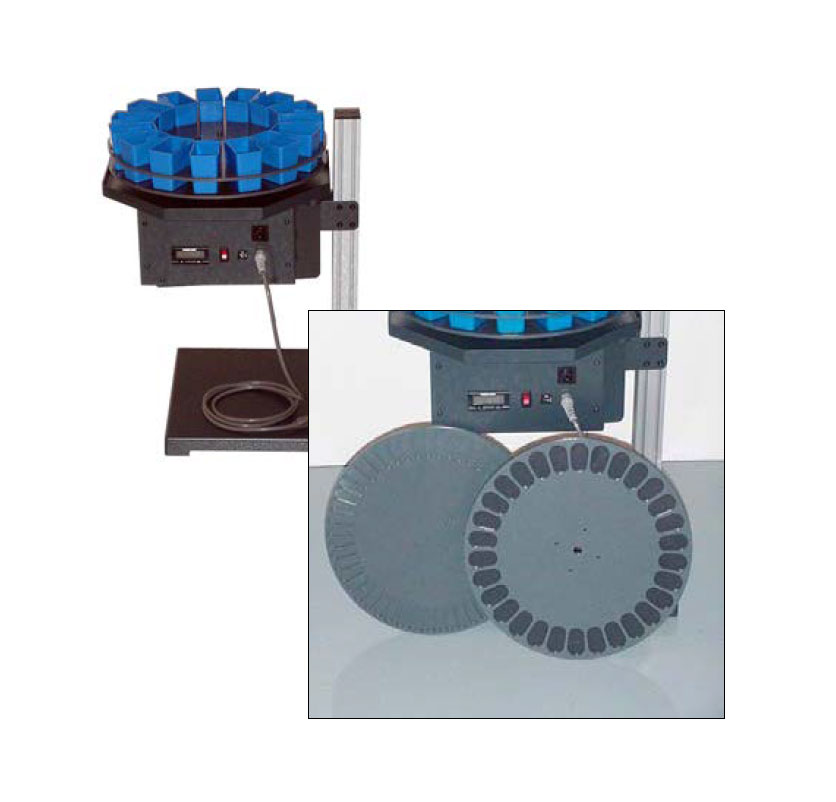

Rotary Parts Carousel

Rotary Parts Carousel

Delicate Parts Can Be Separated/Collected
Into Individual Locations
Enables Longer Periods of Unattended
Operation
SPC Production Scheduling

Features

Quick change part collection wheels
Chute to direct parts into carousel locations
Includes 14 place wheel with removable bins
Includes 30 place wheel
Mounting hardware kit
Easy installation and electrical interface to the Citizen machine
User-friendly programmable parts counter
