Machine Information
Miyano BNA-42MSY2
Configured with two spindles and one turret and equipped with a Y axis and X2 axis, the BNA-42MSY2 is able to handle complex machining with short cycle times and fast set ups.
The X2 axis to sub-spindle enables simultaneous independent machining of the front and back of the workpiece. This, in effect, provides the benefits of a twin turret machine with the significant cost savings of a single turret model.
Featuring
2 tool simultaneous cutting
Renowned Miyano accuracy
Quick to set up and changeover
Highly efficient for small and medium batch sizes (lots)
Compact design for improved floor space efficiency
Miyano BNA-42MSY2
Tooling Area

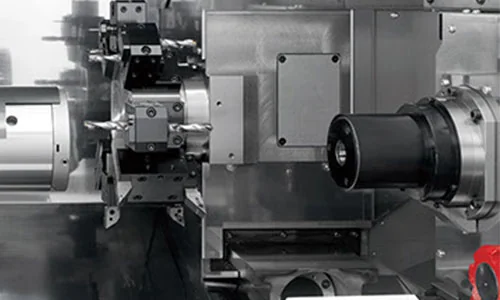

High-rigidity spindle - To achieve powerful cutting, the spindle, which is the key component in machining, is equipped with angular contact ball bearings at the front and double-row cylindrical roller bearings at the rear.

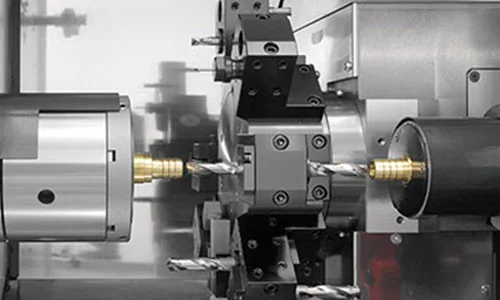

Cycle time shortened by superimposition control - A turret incorporating X, Y and Z axes (HD1) and a sub spindle incorporating X and Z axes (SP2) open up the possibility of machining by superimposition control, where the sub spindle synchronizes with the turret to machine a workpiece in the main spindle (SP1), a very effective way to shorten cycle time.
Specifications
Machine Specifications
| Maximum bar diameter: SP1 | ∅42 mm |
| Maximum bar diameter: SP2 | ∅34 mm (∅42 mm / OP) |
| Standard machining length | 100 mm |
| Number of spindles | 2 |
| Spindle speed: SP1 | 6,000 min-1 |
| Spindle speed: SP2 | 5,000 min-1 |
| Draw tube diameter: SP1 | ∅42 mm |
| Draw tube diameter: SP2 | ∅30 mm |
| Power chuck size: SP1 | 5" |
| Number of turrets | 1 |
| Number of turret stations | 8 |
| Shank size of square turning tool | ▢20 mm |
| Diameter of drill shank | ∅25 mm |
| Number of live tools | 8 |
| Methods of live tools | Single clutch |
| Tool spindle speed | 6,000 min-1 |
| Rapid feed rate: X1 axis | 20 m / min |
| Rapid feed rate: Z1 axis | 20 m / min |
| Rapid feed rate: Y1 axis | 12 m / min |
| Rapid feed rate: X2 axis | 12 m / min |
| Rapid feed rate: Z2 axis | 20 m / min |
| Turret slide stroke: X1 axis | 140 mm |
| Turret slide stroke: Z1 axis | 235 mm |
| Turret slide stroke: Y1 axis | ±35 mm |
| Spindle slide stroke: X2 | axis129 mm |
| Spindle slide stroke: Z2 axis | 360 mm |
| Motors: Spindle motor: SP1 | 11 / 7.5 kW (15min / cont) |
| Motors: Spindle motor: SP2 | 5.5 / 3.7 kW (15min / cont) |
| Live tool motor | 1.0 kW (12 Nm) |
| Motors: Hydraulic pump motor | 0.75 kW |
| Motors: Lubricating motor | 0.004 kW |
| Motors: Coolant motor | 0.18 kW |
| Motors: 145 PSI pressure coolant motor | 1.0 kW |
| Motors: Turret index motor | 0.75 kW |
| Input power capacity | 29 KVA |
| Voltage | AC 200 / 220 V |
| Fuse capacity | 100 A |
| Compressed air supply | 0.5 Mpa |
| Hydraulic oil tank | 7 L |
| Lubricating oil tank | 2 L |
| Coolant tank | 165 L |
| Machine height | 1,620 mm |
| Floor space | W 2,278 × D 1,450 mm |
| Machine weight | 3,000 kg |
