Machine Information

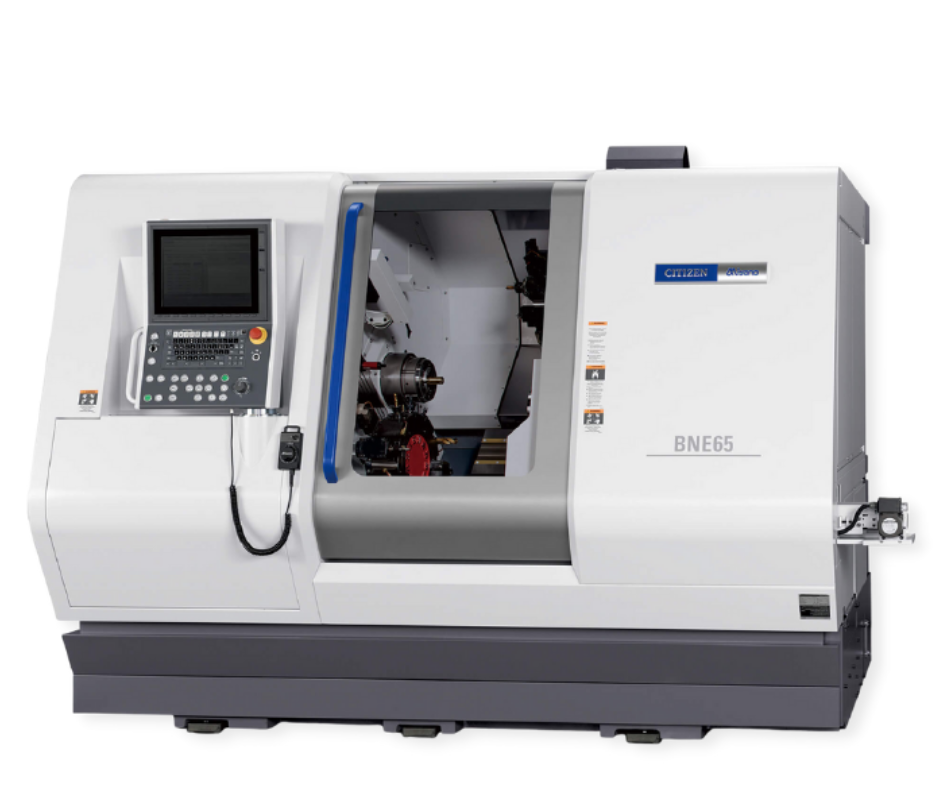

Miyano BNE-51/65MYY
The BNE-51MYY and BNE-65MYY, with machining diameter of 51mm and 65mm respectively, has inherited the characteristics of high rigidity and precision for which the BNE series has been greatly praised.
The cover has been completely redesigned with a large window to provide excellent visibility. It has also been equipped with a new HMI (Human Machine Interface). Use of a touch panel improves operability and its use with the new NC unit also improves productivity.
9 independent cutting axes
4 simultaneous cutting axes
24 HP main spindle –15 HP Sub Spindle
Main and sub spindle RPM 5000
Dual 12 station turrets each with Y axis capability
24 live tool positions
Live tool RPM 6,000
BNE-51MYY 2.00 inch bar capacity
BNE-65MYY 2.56 inch bar capacity
Miyano BNE-51/65MYY
Additional Details
MYY models equipped with double-Y axis
The upper and lower turrets of the BNEMYY are equipped with a Y axis. Operating with the same capabilities, these two 12-station turrets provide even more flexible tooling due to optimal process allocation that is not restricted by machining balance limitations.
Reduced Cycle Times with High-Efficiency Machining

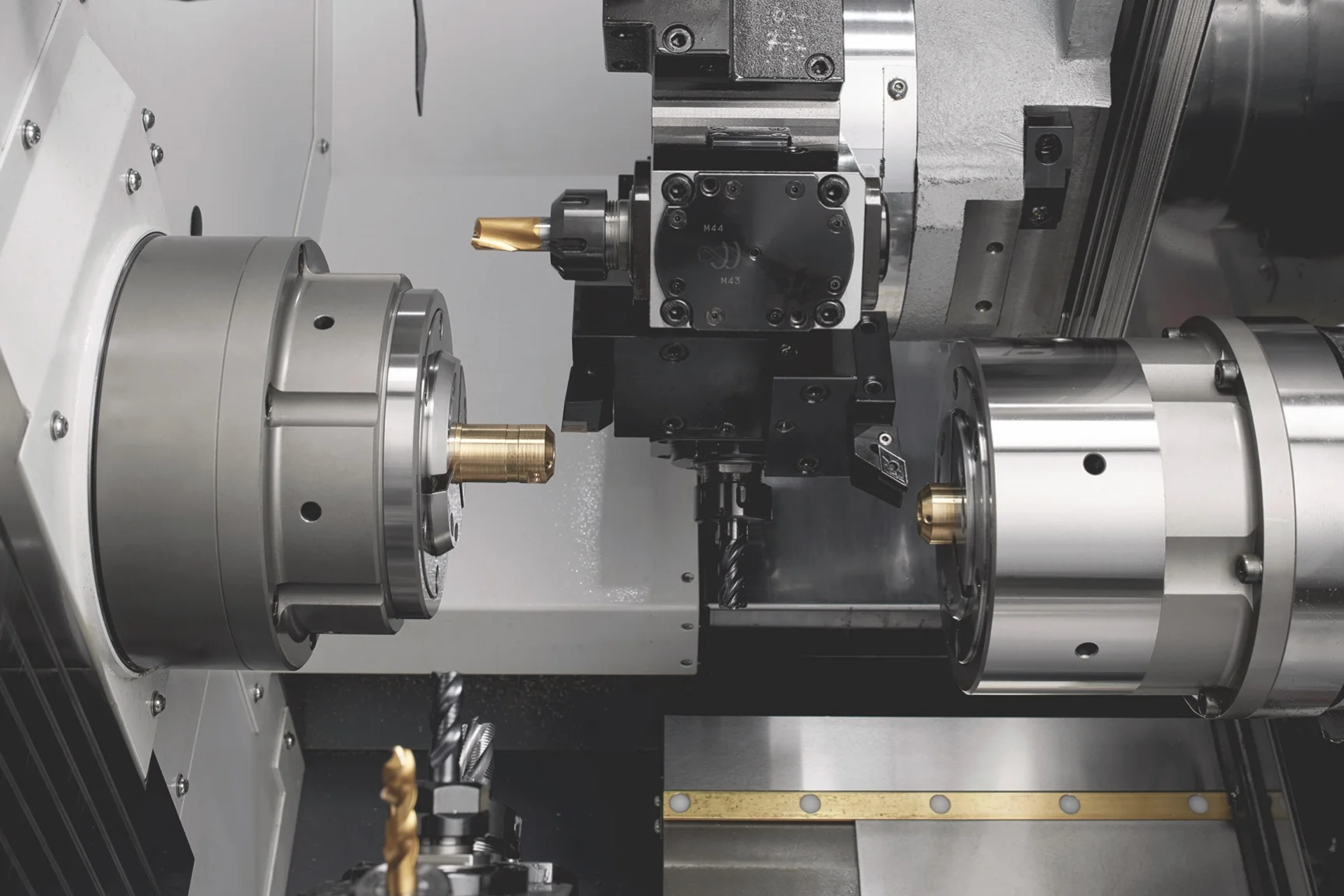

The two turrets equipped with a Y axis, and mechanical structure formed from the front and back spindles serve to reduce cycle times by enabling high efficiency machining such as simultaneous left/right and up/down machining for superimposed and similar types of machining.
Maximum machining diameter of 65 mm
The 65mm bar capacity of the BNE65 gives it the largest machining capability of the entire Miyano brand.The output of the front and back spindle motors has been increased 1.2 to 1.5 times that of current models, greatly improving cutting capability. Additionally, increasing the maximum speed to 5,000 rpm enables optimal conditions for cutting of small-diameter workpieces.
New HMI (Human Machine Interface) Operating Panel
A new HMI equipped operating panel with a 15-inch touch panel has been adopted to improve operability for workers. Additionally, universal design has been applied to operating panel colors and similar elements for the first time. Universal design has been adopted in consideration of the different ways colors are perceived to ensure that information is provided in a manner that is readily visible and easily understood by anyone.
Functions
Standard NC Functions
- Mitsubishi M830W Control 15” Color Touch Panel
- Automatic Power Off Function
- Background Edit Function
- Canned Cycle for Threading
- Chamfer/Corner Rounding Function
- Constant Surface Speed
- Control (Main & Back)
- Continuous Threading Cycle
- I/O Interface for RS232C/SD Card/USB/Ethernet
- Inch/Metric Conversion
- Manual Feed by Pulse Generator for all Axes
- Minimum Increment (0.00001 inch)
- Multiple Repetitive Cycle for Turning I/II
- Number of Tool Offset: 99 pairs
- Program Storage Capacity 2400m (960KB) tape length
- Preparation Function
- Program Check Function
- Program Editing Support Function
- Self-Diagnosis Function
- Superimposed & Simultaneous Control System
- Cut-off Tool Breakage Detector (Torque Check)
- Tool Nose Radius Compensation
- Spindle Synchronization
- C-Axis Control (Main)
- C-Axis Control (Back)
- Canned Cycles for Drilling
- User Macro
- Milling Interpolation
- Polygon Machining Function
- Synchronous Tapping
- Tool Life Management I
- Sub Inch Designation
- Helical Interpolation
- Workpiece Counter Display
- Geometric Command Function
- Network I/O Function
Functions
Optional NC Functions
- Variable lead threading
- Circular threading
- Simultaneous threading in 2 system I
- High speed synchronous tapping
- High speed synchronous tapping phasing function
- Differential speed synchronous tapping
- Coordinate rotation command
- Hobbing function
- Program storage capacity 4800m (1920kb) tape length
- Manual skip function
Accessories
Standard Accessories
- Spindle Disk Brake on Main (Left) Spindle
- Spindle Disk Brake on Back (Right) Spindle
- Air Blow on Main (Left) Spindle Air Blow on Back (Right)
- Spindle (Outer and Inner) Work Ejector (Cylinder Type) 12 Stations Upper Turret
- (HD1) with Y-axis slide 12 Stations Lower Turret
- (HD2) with Y-axis slide 5.3 HP Rotary Tool Drive
- Motor (HD1 and HD2) Rotary Tool Jig
- Filler Tube Assembly Coolant Level Switch
- Coolant System (Turret and Right Spindle)
- Door Interlock
- Automatic Lubrication System
- Automatic Power Shut-off Parts Catcher
- Parts Conveyor
- Machine Light
- RS232C Interface
- Signal Tower, 3 Steps
- Cut-off Confirmation (Cylinder Type)
- Chip Conveyor
- Bar Feed Interface (Harting 24 Pin Type Connector) Tool Package
Accessories
Optional Accessories
- Chip box
- Turret high pressure coolant & air blow
- Tool setter
- DIN177e collet chuck system (main & sub spindle)
- 6” 3-jaws power chuck system (main & sub spindle)
- 6” 2-jaws power chuck system (main & sub spindle)
- Drill breakage detector (HD1)
- Drill breakage detector (touch sensor, HD1)
- Drill breakage detector (HD2)
Specifications
Machine Specifications
| Machining Capacity | BNE-51MYY | BNE-65MYY |
|---|---|---|
| Standard parts catcher length | 195 mm | 195 mm |
| Maximum machining diameter | 51 mm | 65 mm |
| Maximum drilling diameter SP1 | ∅ 25 mm | ∅ 25 mm |
| Maximum drilling diameter SP2 | ∅ 20 mm | ∅ 20 mm |
| Maximum tapping diameter SP1 | M22 x 2.5 | M22 x 2.5 |
| Maximum tapping diameter SP2 | M20 x 2.0 | M20 x 2.0 |
| Spindles | ||
| Number of spindles | 2 | 2 |
| Spindle speed SP1 & SP2 | 5,000 rpm | |
| Spindle nose SP1 | A2-6 | A2-8 |
| Spindle nose SP2 | A2-6 | A2-6 |
| Draw tube Diameter SP1 | ∅ 52 | ∅ 66 |
| Draw tube Dia. SP2 | ∅ 52 | ∅ 52 |
| Type of collet chuck SP1 & SP2 | Hardinge S22 | Hardinge S26 |
| Turret | ||
| Number of turrets | 2 | 2 |
| Turret stations HD1 & HD2 | 12 ST. | 12 ST. |
| Shank size of square turning tool | ¾" Sq. | ¾" Sq. |
| Diameter of drill shank | 1" | 1" |
| Rotary tools | ||
| Number of installed rotary tools HD1 & HD2 | Max. 12+12 | Max. 12+12 |
| Type of rotary tools | Direct tang drive | Direct tang drive |
| Tool spindle speed | Max. 6,000 rpm | Max. 6,000 rpm |
| Machining capacities | ||
| Max. drilling dia. | ∅ 16 mm | ∅ 16 mm |
| Tap | M12 x 1.75 | M12 x 1.75 | Feed rate |
| Rapid feed rate X1 axis | 20 m/min | 20 m/min |
| Rapid feed rate Z1 axis | 20 m/min | 20 m/min |
| Rapid feed rate Y1 axis | 12 m/min | 12 m/min |
| Slide thrust X2 axis | 18 m/min | 18 m/min |
| Slide thrust Z2 axis | 18 m/min | 18 m/min |
| Slide thrust Y2 axis | 12 m/min | 12 m/min |
| Slide thrust X3 axis | 20 m/min | 20 m/min |
| Slide thrust Z3 axis | 20 m/min | 20 m/min |
| Slide stroke X1 axis | 205 mm | 205 mm |
| Slide stroke Z1 axis | 280 mm | 280 mm |
| Slide stroke Y1 axis | 100 (+60/-40) mm | 100 (+60/-40) mm |
| Slide stroke X2 axis | 205 mm | 205 mm |
| Slide stroke Z2 axis | 175 mm | 175 mm |
| Slide stroke X3 axis | 155 mm | 155 mm |
| Motors | ||
| Spindle motor SP1 | 25 hp (30 min)/20 hp (cont.) | 25 hp (30 min)/20 hp (cont.) |
| Spindle motor SP2 | 15 hp (30 min)/ 10 hp (cont.) | 15 hp (30 min)/ 10 hp (cont.) |
| Rotary tools motor HD1 & HD2 | 5.3 hp | 5.3 hp |
| Required power source | ||
| Power supply | AC 200 ± 10% | AC 200 ± 10% |
| Power supply capacity | 47 KVA | 47 KVA |
| Other Information | ||
| Air pressure source | 0.5 MPa | 0.5 MPa |
| Air pressure flowrate | 113NL/min. (when using air blower for 1 sec. in 3 locations) | 113NL/min. (when using air blower for 1 sec. in 3 locations) |
| Hydraulic oil tank capacity | 4.75 gallons | 4.75 gallons |
| Lubricating oil tank capacity | 1.06 gallons | 1.06 gallons |
| Coolant tank capacity | 92.5 gallons | 92.5 gallons |
| Machine height | 81.5" | 81.5" |
| Floor space | 112.6" W x 86.2" D | 112.6" W x 86.2" D |
| Machine weight | 17,813 lbs. | 17,924 lbs |
